In Stock

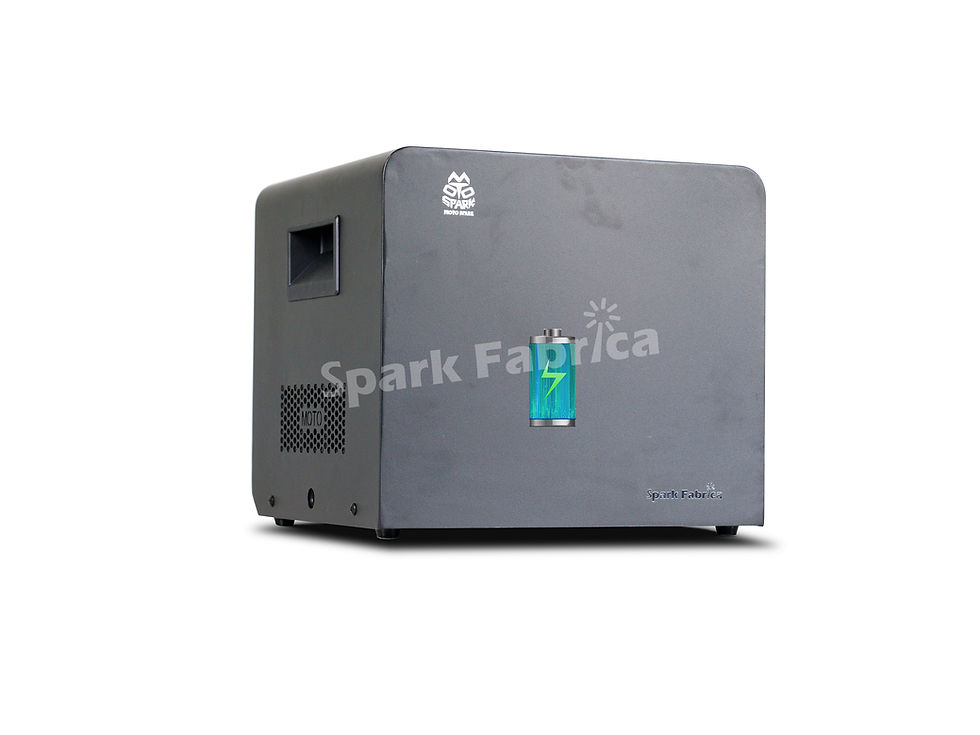

Moto Spark M5 Battery & Power Cold Spark Machine


This is the first of its kind within Stage FX. This machine can be powered using it's internal battery or by directly connected to a power source. It has a compact design with many features including, 5 Meter heights, 2.5Hour Battery firing time and 24 Hour Standby time.


Manufactured by Spark Fabrica, you can be assured this is a quality machine. All Spark Fabrica's products come with a 1 Year Warranty for that added peace of mind.


The Moto Spark M5 is made with the most premium materials to ensure great results and reliability. The machine can be set two different modes. On a full charge battery mode can last 2.5 Hours of firing time and 24 hours on standby. If you wish to not use the battery, you can directly connect the machine into the mains power for continuous usage. The machine will automatically switch to mains power when the battery is low.


The machine can be used using DMX or a wireless controller in which is included, the controller has a distance of 50 meters from the machine. The Moto M5 is made using a stainless steel casing and has a TFT screen for easy configuration.


The Moto Spark M5 produces an excellent effect with no fallout or residue from the sparks.





  • Indoor & Outdoor (Non Waterproof)
  • 2-5 Meter Spark Height

AC Power:


  • Voltage: 240V, 50/60Hz or Battery
  • Power Consumption: 600W
  • Power Input Type: Seetronic
  • Power Output Type: Seetronic
  • DMX: 3 Pin & 5 Pin




  • Signal Interface: 3 & 5 Pin DMX




  • Hopper Capacity: 150g
  • Consumable Type: Thunderbolt FX Spark Granules




  • Control Protocol: DMX512
  • DMX Channels: 2CH and 6CH
  • Control Mode: Standard DMX signal control or Wireless Remote
  • Effect Angles: Vertical
  • SMPTE: Touch Screen console support (CT-05)


Included In Box:


  • Power Plug: SEETRONIC (1.6 Metre)
  • Remote Controller:
  • DMX Cable: 3M
  • Power Cable: 3M
  • Safety Loop


Fuel Consumption:


  • 100% Output 20g Per Min




  • 310 x 285 x 275mm
  • Net Weight: 14KG



  • Heat up time: <5 Mins
  • Max continuous output duration: 30secs
  • Charge Time: 1.5 Hours
  • Standby Time: 24 Hours (On Battery)
  • Firing Time: 2.5 Hours (On Battery)



Flight Cases are available for all Spark Fabrica items, please contact us for a quote.



    • CE
    • RoHS
